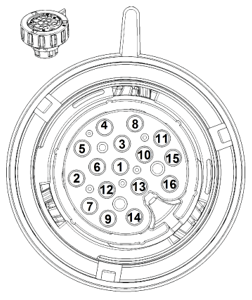

8HP GEN1 gearbox connector pinout, looking into the connectors terminal side.



clip1944

8HP GEN1 gearbox connector pinout, looking into the connectors terminal side.



Dodge 8HP GEN1 connector pinout

Pin

Description

8HP usage

Note

1

-





2

-





3

-





4

-





5

CAN H

CAN High



6

CAN L

CAN Low


7

-



8

-



9

+12V

Wakeup signal


10

-



11

-



12

-



13

+12V

Main power supply


14

GND

Ground


15

-



16

-



Note: The power-up sequence is critical. The main power supply must be active continuously (or at least 10–15 s) before the wake-up signal is applied. If not, part of the TCU will fail to initialize and the paddles will not function in manual mode.



12-pin GT150 connector

Pin

Description

Usage

A

+12V (power supply)

Can be powered by a constant/powerhold relay

B

+12V (wakeup signal)

Key_on

C

CAN H

To MaxxECU CAN H

D

-



E

-



F

-


G

GND

To chassie/engine GND

H

-


J

CAN L

To MaxxECU CAN L

K

-


L

-


M

-


Note: The power-up sequence is critical. The main power supply must be active continuously (or at least 10–15 s) before the wake-up signal is applied. If not, part of the TCU will fail to initialize and the paddles will not function in manual mode.



Dodge Shifter connector

Pin

Description

Usage

Note

1

+12V

Main power supply



2

-





3

-





4

CAN H

CAN High



5

CAN L

CAN Low



6

-





7

-





8

-





9

-




10

GND

Ground





BMW F series shifter connector (10-pin)

Pin

Description

Usage

Note

1

-





2

-





3

CAN L

CAN Low



4

CAN H

CAN High



5

-





6

-





7

+12V (wakeup)

Wakeup signal



8

GND

Ground



9

-





10

+12V

Main power supply
