Allows full control of the clutch pressures from a clutch position sensor, an alternative to the 8HP clutchkick which uses a digital input.
Requirements
•Binary5 8HP TCU firmware and the latest MTune 1.157.
•Properly configured Clutch Positon input.
1. Drifters MUST enable this feature.

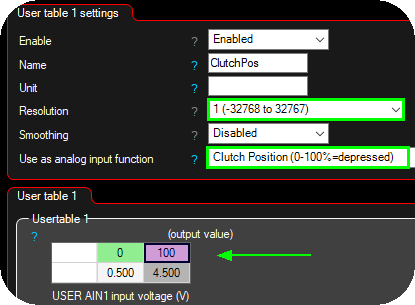

2 Calibrate your clutch position sensor from your wired AIN input. 0% = clutch pedal not pressed, 100% = clutch pedal fully depressed.

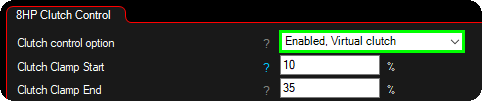

3 Enable the virtual clutch control option, see MTune 8HP Settings how to find the clamp points.
Note: Proper calibration of clutch clamp start/end positions is critical. The 0-100% clutch position is interpolated between these points, with a 5% slack at both ends to ensure correct transmission of 0% and 100% clutch correction values.
Example from the above:
0% clutch position --> 100% clutch corr (uses 100% of available clutch pressures).
5% clutch position --> 35% clutch corr (uses 35% of available clutch pressures).
95% clutch position --> 10% clutch corr (uses 10% of available clutch pressures).
100% clutch position --> 0% clutch corr (uses 0% of available clutch pressures).
