Inputs (working)
•AC request/idle up.
•ABS wheel speed directly into MaxxECU traction system (four individual wheel speed).
•AC request button.
•Brake switch.
Outputs (working)
•Tachometer (RPM).
•Speedometer.
•Check engine light.
•Coolant warning (cold/hot).
•Cruise control active + set speed.
•Odometer.
Not working/issues/work in progress
•OBDII works only when CAN wired to OBDII connector (requires JMTII terminals).
•Fuel consumption meter.
Changelog
•Initial support.
•Added enable/disable options for brake switch, clutch switch, vehicle/wheel speed, ESP/DSC/TC button, AC switch, and cruise buttons for this CAN protocol - previously these signals were always captured automatically when available.
•Restricted this CAN protocol to listen only on its configured CAN bus (on dual-bus ECUs) to prevent conflicts and isolate buses.

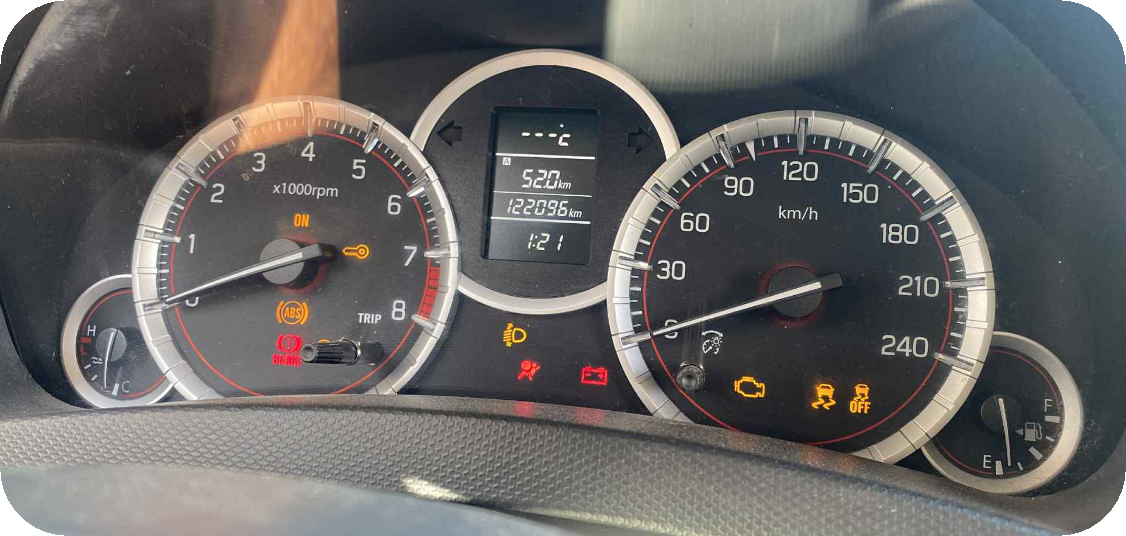

Suzuki Swift dashboard.
Help an contribution
Weerathorn Ekamornphan, Samphanyont Auto Service Co. Ltd (Thailand).
Emil Larsson, Hubdyno Kft (Hungary).
